PETIKEMAS offers competitive rates for 20’ ISO TANK CONTAINER short-term or long-term rental.
Contact us for more information
+6680 539-3883
info@petikemas.co.th
Other services include

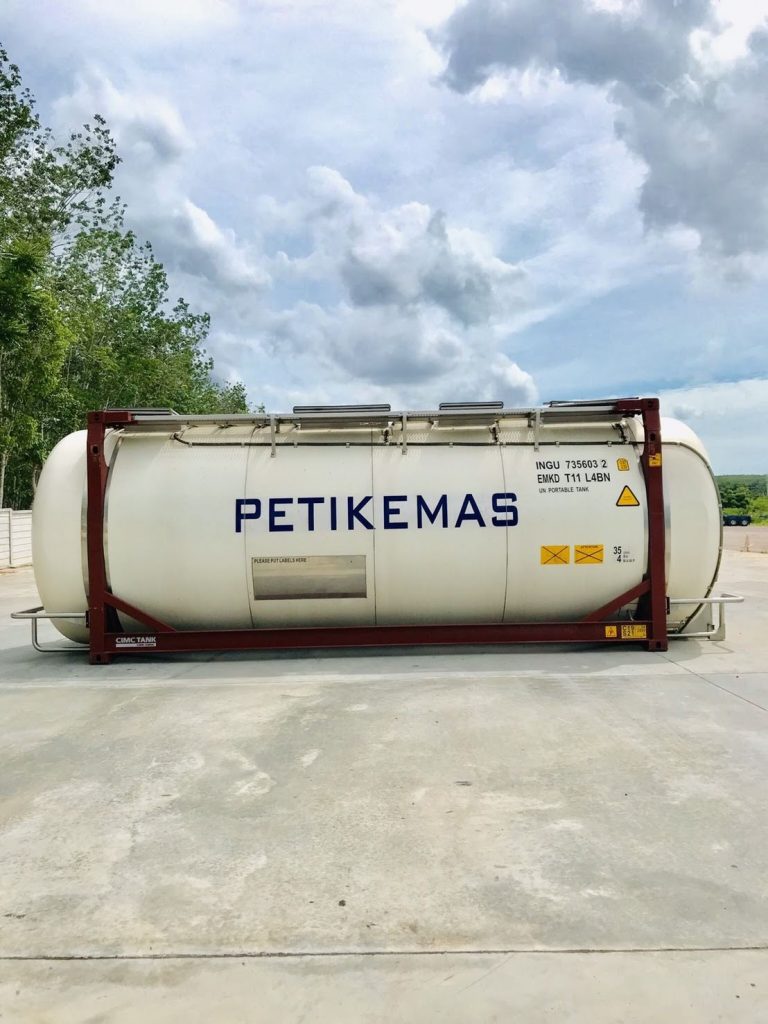

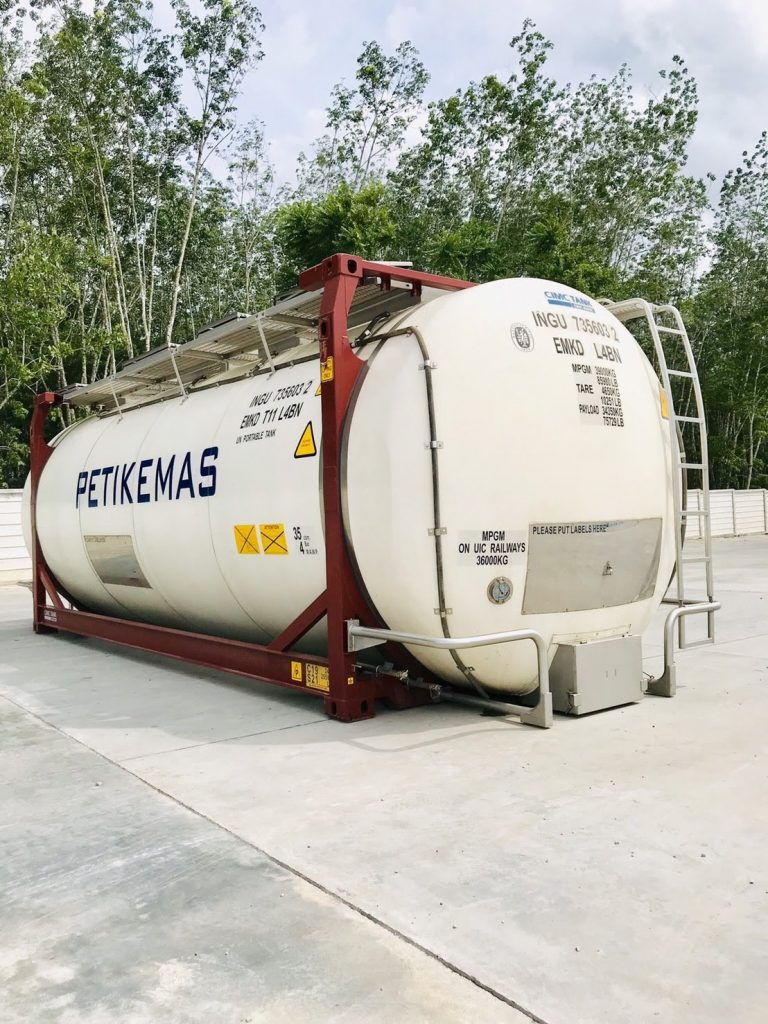

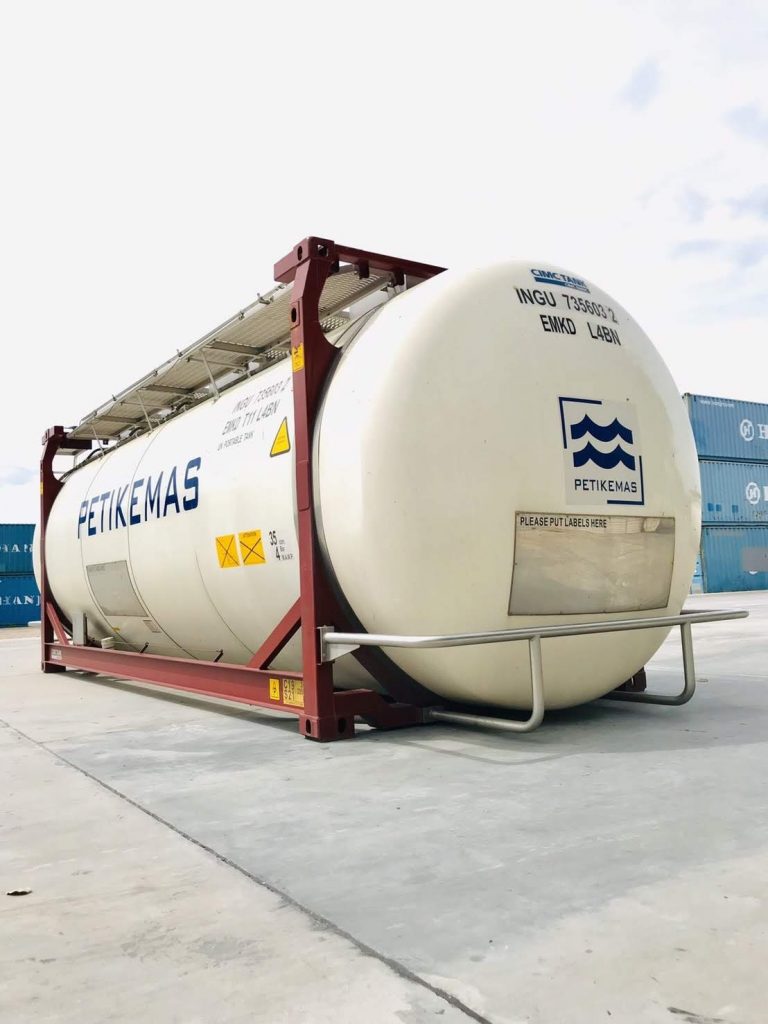

26,000L-20′ ISO TANK CONTAINER Specification |
|
| CAPACITY | 26,000 Litres |
| Frame (L/W/H) | 6058/2438/2591mm |
| TARE MASS | 3,800 kg |
| MAX GROSS MASS | 36,000 kg |
| PRODUCTS | General purpose liquids |
| HYDROSTATIC TEST PRESSURE | 6 bar |
| VESSEL DESIGN TEMP | -40℃ to 130℃ |
| TEMPERATURE (@atm P) | 140℃ |
| DESIGN CODE | ASME Ⅷ DIV. 1 |

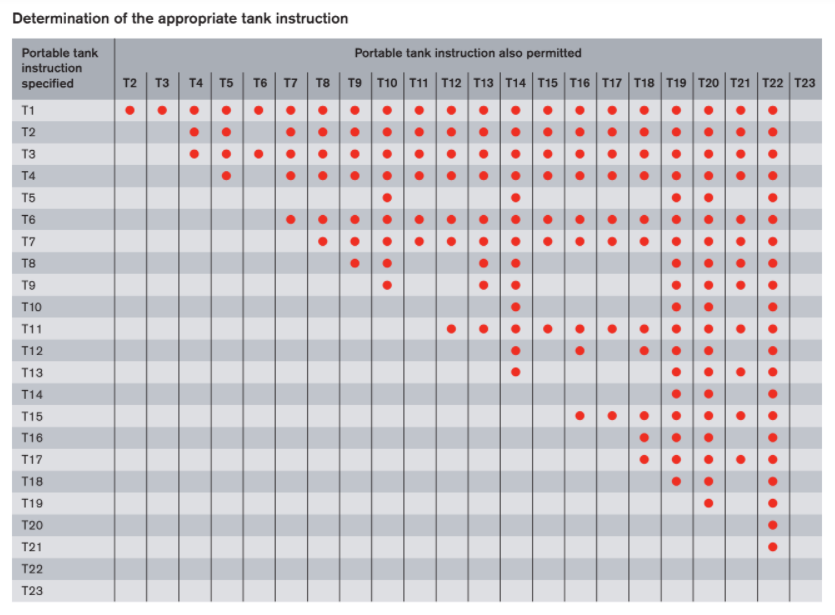

| TYPE APPROVALS | UN portable tank (T11 IMDG, CFR49, ADR/RID), UIC, TIR, CSC, TC, ADR L4BN |
| CLASSIFICATION | Bureau Veritas |

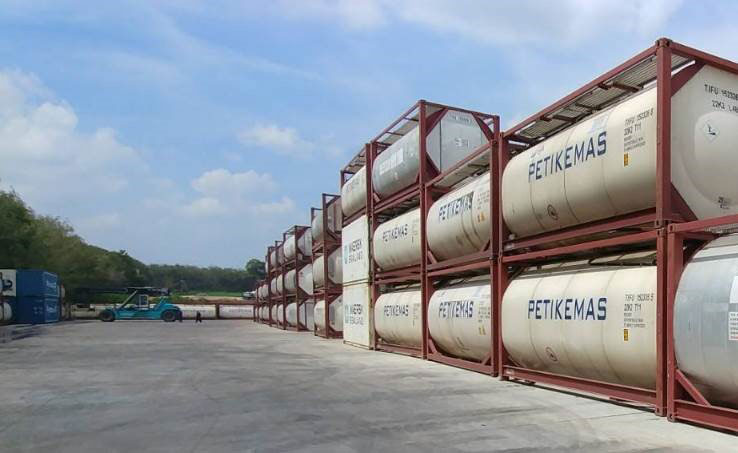

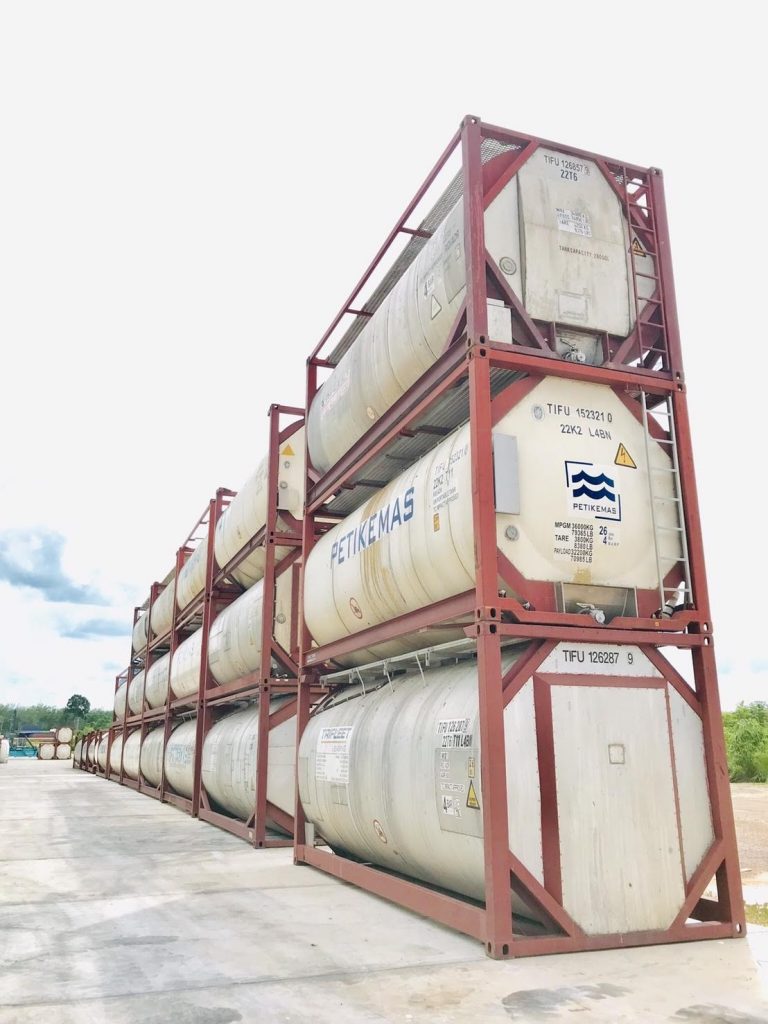

| STACKING TEST | Each container is approved for 9 high stacking at 24,000kg |

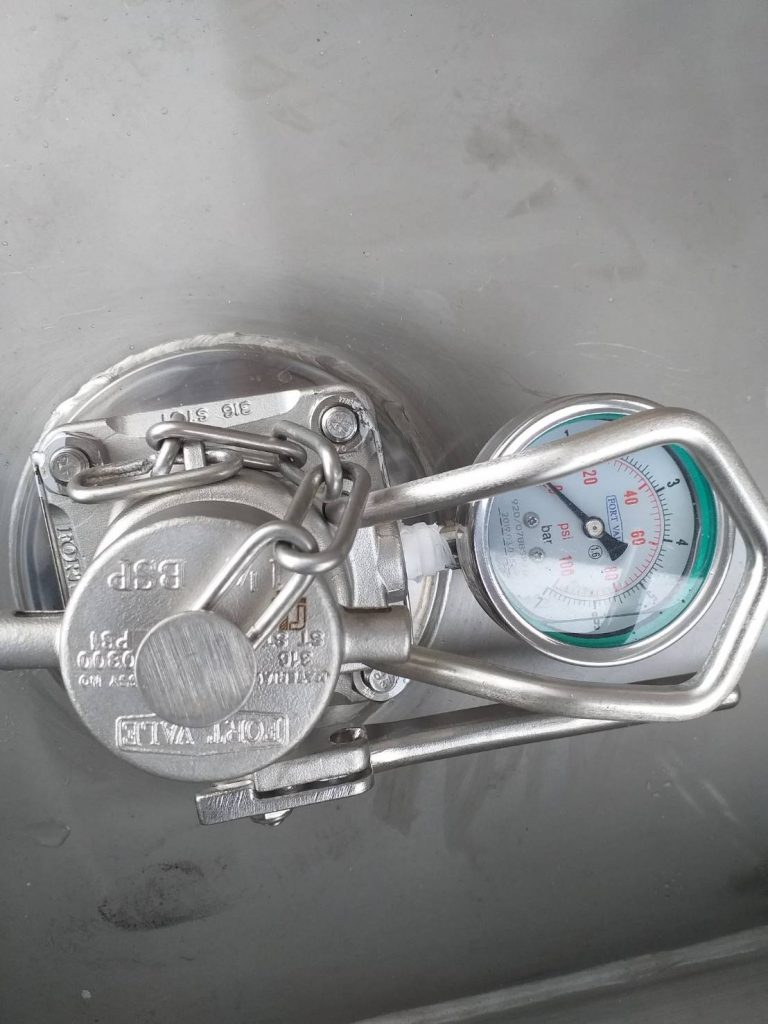

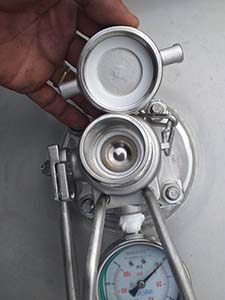

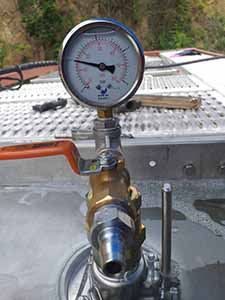

| SAFETY RELIEF ASSEMBLY | 2½” BSP safety relief valve without gauze. Pressure only model set at +4.4 bar (63.8psi), complete with Adaptor and gauge guard |
| MANHOLE | 500mm low profile, 8 point fixing. The manlid is completedwith TIR |

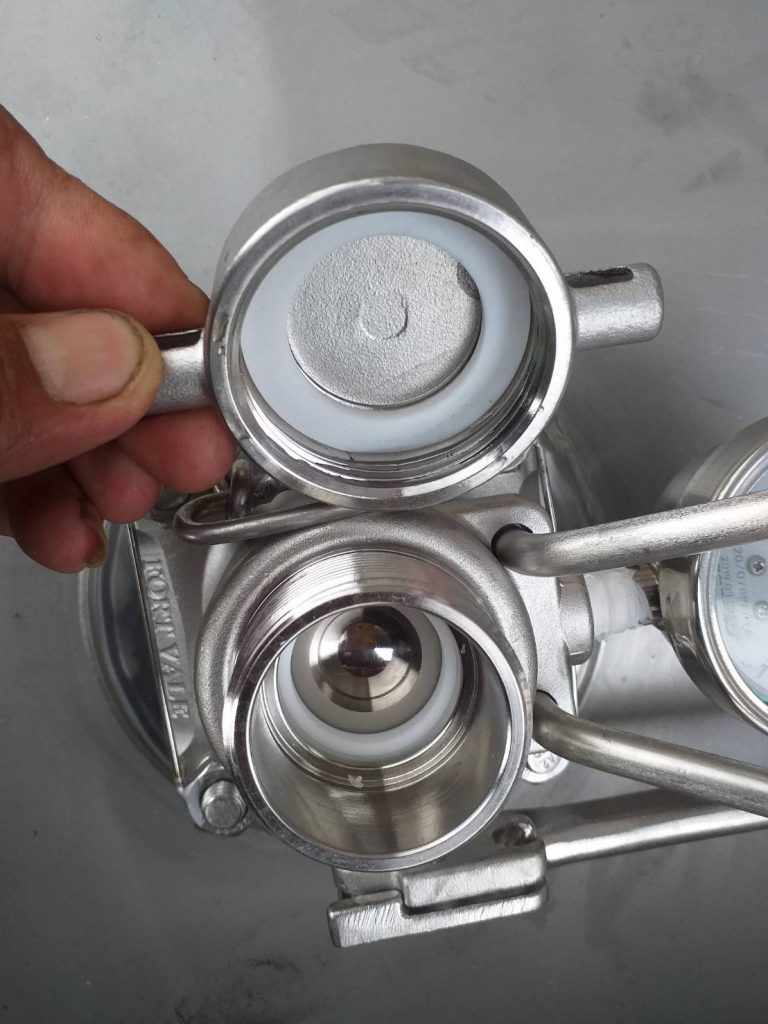

| AIR INLET ASSEMBLY | DN 40 ball valve terminating with 1½” BSP connection and cap |

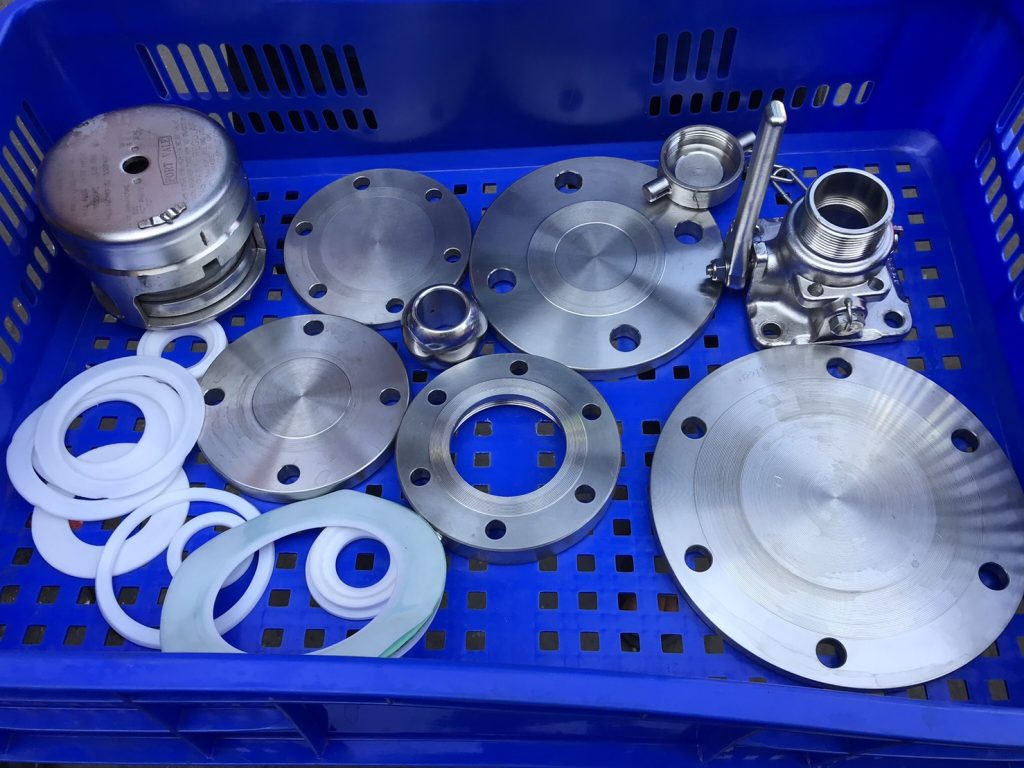

| TOP DISCHARGE PROVISION | DN80 stainless steel 316 tank pad with not less than 94mm hole with blind flange. The assembly is fitted off centre on a low profile horizontal tank pad. Flange to be dual drilled: 6×M12 on 168.3PCD and 4×M16 on 160PCD |

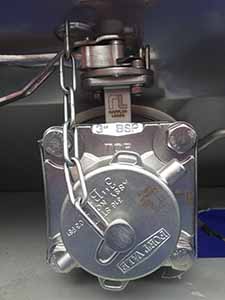

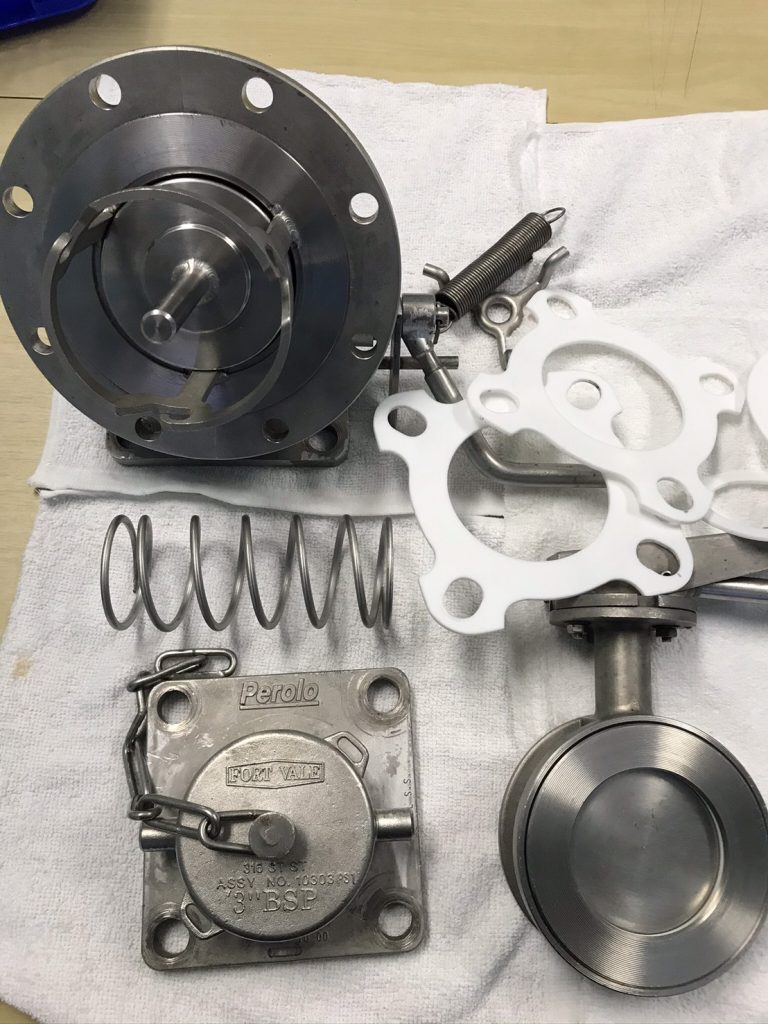

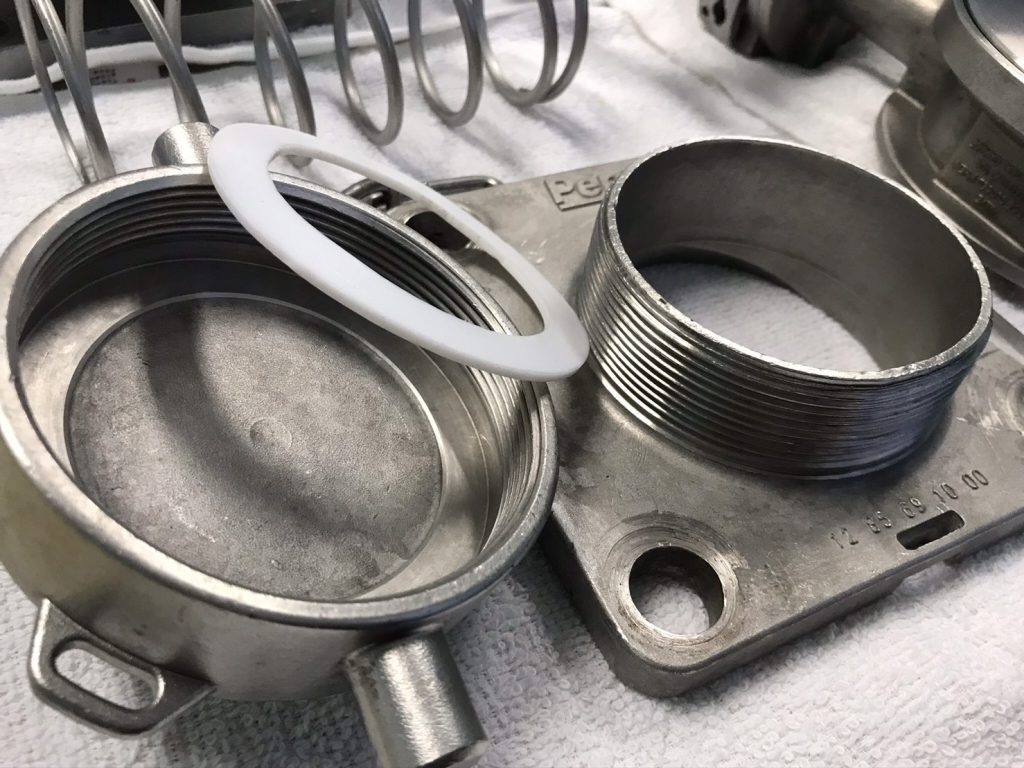

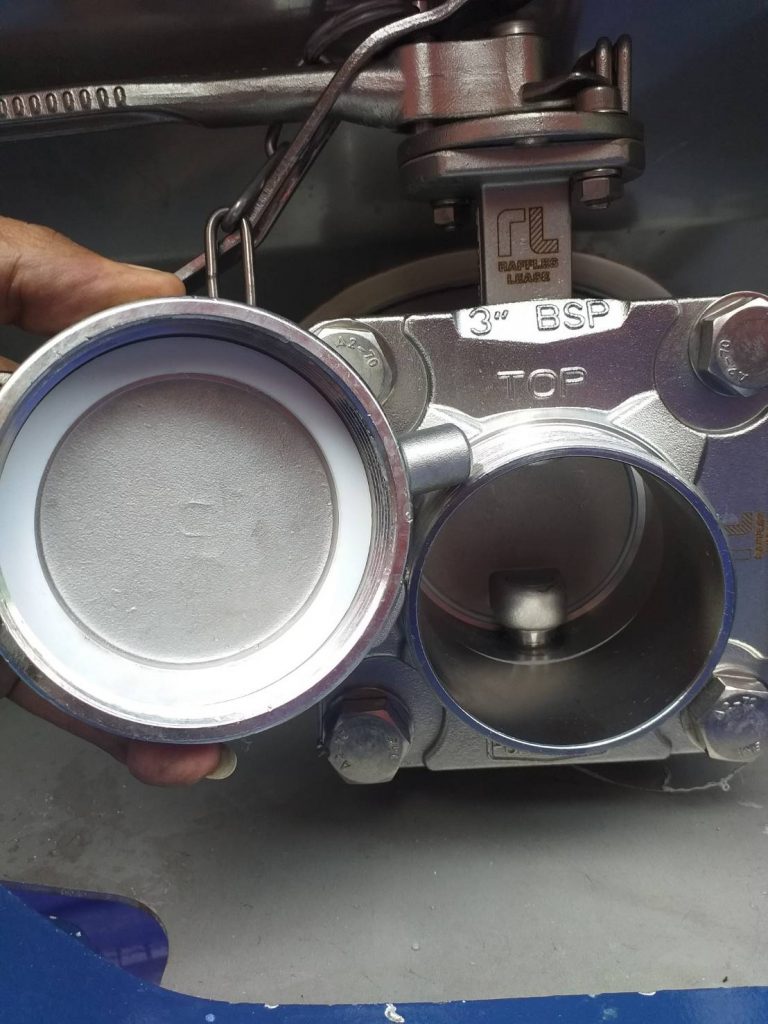

| BOTTOM DISCHARGE | FV: DN80 30° Univalve footvalve terminating with a 3″ BSP spigot with cap and chain. Perolo: DN80 30° TWINCO footvalve terminating with a 3″ BSP spigot with cap and chain. The bottom flange is a normal flange. |
| STEAM HEATING | 8 runs steam heating system. Longitudinal steam channels manufactured from Duplex stainless steel. Heating provided to BDC area. Actual heating area 4.57 m2, effective heating area 9.6m2. |
| PRESSURES | 4 bar working pressure |
| CONNECTIONS | 1″ BSP inlet, 1″ BSP outlet. Stainless steel dustcaps fitted. |
| INSULATION | 50mm Rockwool where possible. |
